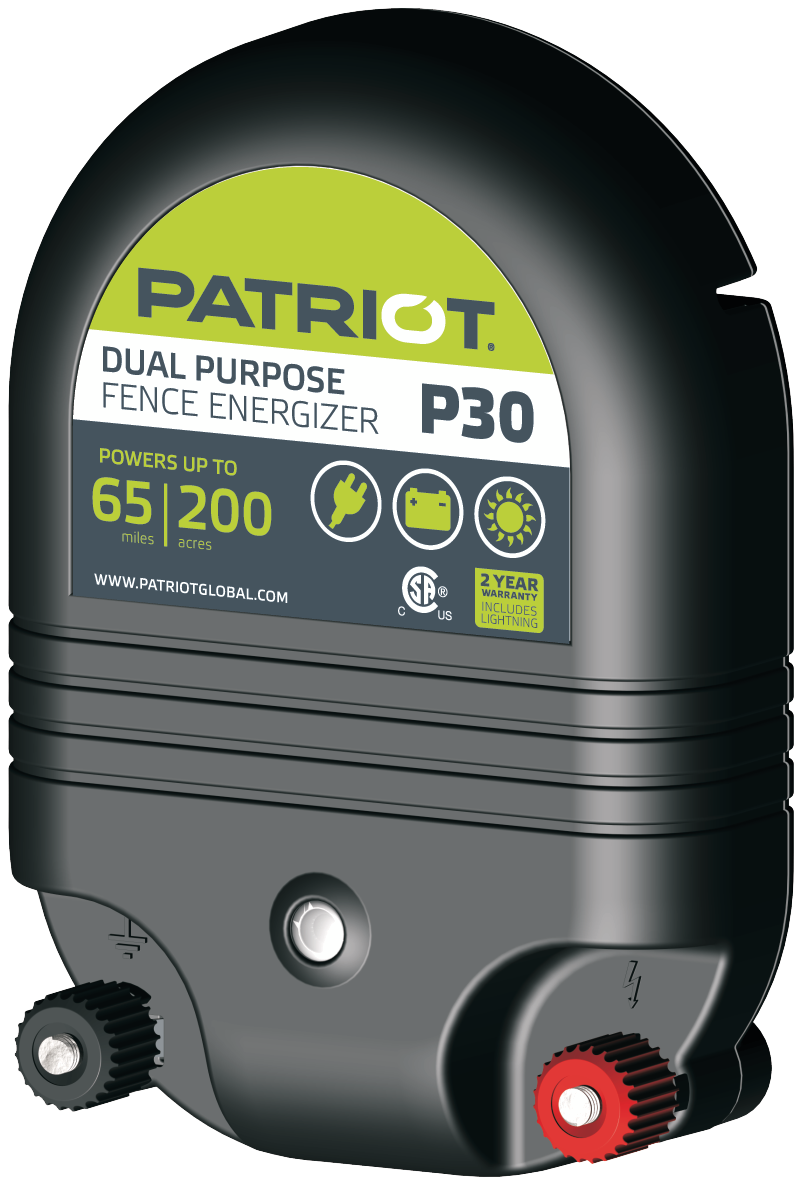

Patriot P30 Dual Powered Fence Energizer | 3 Joules | 65 Miles | AC & 12V

SKU: FENELEP30
$359.95 CAD

Patriot P30 Dual Powered Fence Energizer – Maximum Range & Livestock Control

When your operation demands the highest level of fence performance, the Patriot P30 Dual Powered Fence Energizer delivers. With 3 joules of peak output energy and coverage of up to 65 miles (200 acres), the P30 is the most powerful energizer in the Patriot lineup — built for large farms, ranches, and pastures where reliable containment is non-negotiable. Run it on AC mains, a 12V battery, or pair it with a solar panel for fully off-grid operation.

Key Features

  • Dual-Purpose Power – Runs on 110V AC mains or a 12V deep-cycle/marine battery for maximum flexibility on or off the grid.
  • Solar Compatible – Connect a 30W solar panel to charge a 12V battery for fully off-grid, remote operation.
  • Low Impedance Technology – Delivers consistent, powerful energy to the end of the fence line, even under heavy vegetation or foliage load.
  • High Output Voltage – Up to 11.0 kV max (6.4 kV @ 500Ω) for strong, reliable livestock deterrence.
  • LED Pulse Indicator – Confirms the energizer is active and pulsing at a glance.
  • Easy Clip-On Mounting – Unique clip-on wire feature allows quick, safe installation directly on fence wire.
  • Wide Animal Suitability – Effective for cattle, horses, deer, pigs, lambs, goats, dogs, rabbits, squirrels, and chickens.
  • 3-Year Full Replacement Warranty – Includes lightning protection for added peace of mind.

Specifications

  • Model: Patriot P30
  • Peak Output Energy: 3.0 Joules
  • Peak Stored Energy: 4.5 Joules
  • Coverage: Up to 65 miles / 200 acres
  • Output Voltage: 11.0 kV max / 6.4 kV @ 500Ω
  • Power Options: 110V AC mains or 12V deep-cycle/marine battery
  • Recommended Solar Panel: 30 watts
  • Current Consumption: 300 mA
  • Safety Standard: IEC compliant
  • Warranty: 3-year full replacement including lightning protection
  • Weight: 2.0 kg (4.4 lbs)
  • SKU: FENELEP30

Get the power and reliability your farm demands — order the Patriot P30 Fence Energizer today.

📄 Download the Patriot P30 Product Manual (PDF)

Care information

Setup & Installation

  • Choose your power source: connect to 110V AC mains, or attach a 12V deep-cycle/marine battery (or solar-charged 12V battery via a 30W solar panel).
  • Use the clip-on wire feature to mount the P30 directly onto your fence wire, or install on a post using the mounting bracket.
  • Connect the fence lead to the fence terminal and the ground lead to a grounding rod driven at least 3 feet into moist soil.
  • Confirm the LED pulse indicator is flashing to verify the unit is active and energizing the fence.
  • Use a fence tester to verify voltage at the end of the fence line before introducing livestock.

Maintenance Tips

  • Inspect fence lines regularly for vegetation contact, which can significantly reduce output energy and shock effectiveness.
  • Check grounding rods annually to ensure a solid earth connection, especially after dry seasons.
  • If running on a 12V battery, monitor charge levels regularly and recharge or replace as needed.
  • If solar-powered, keep the solar panel surface clean and unobstructed for optimal charging performance.
  • Refer to the Patriot P30 manual for troubleshooting LED fault codes and warranty claim procedures.
