Gallagher M1500 Electric Fence Energizer | High Performance | 15 Joules | G324514

Gallagher M1500 Electric Fence Energizer | 15 Joules | G324514

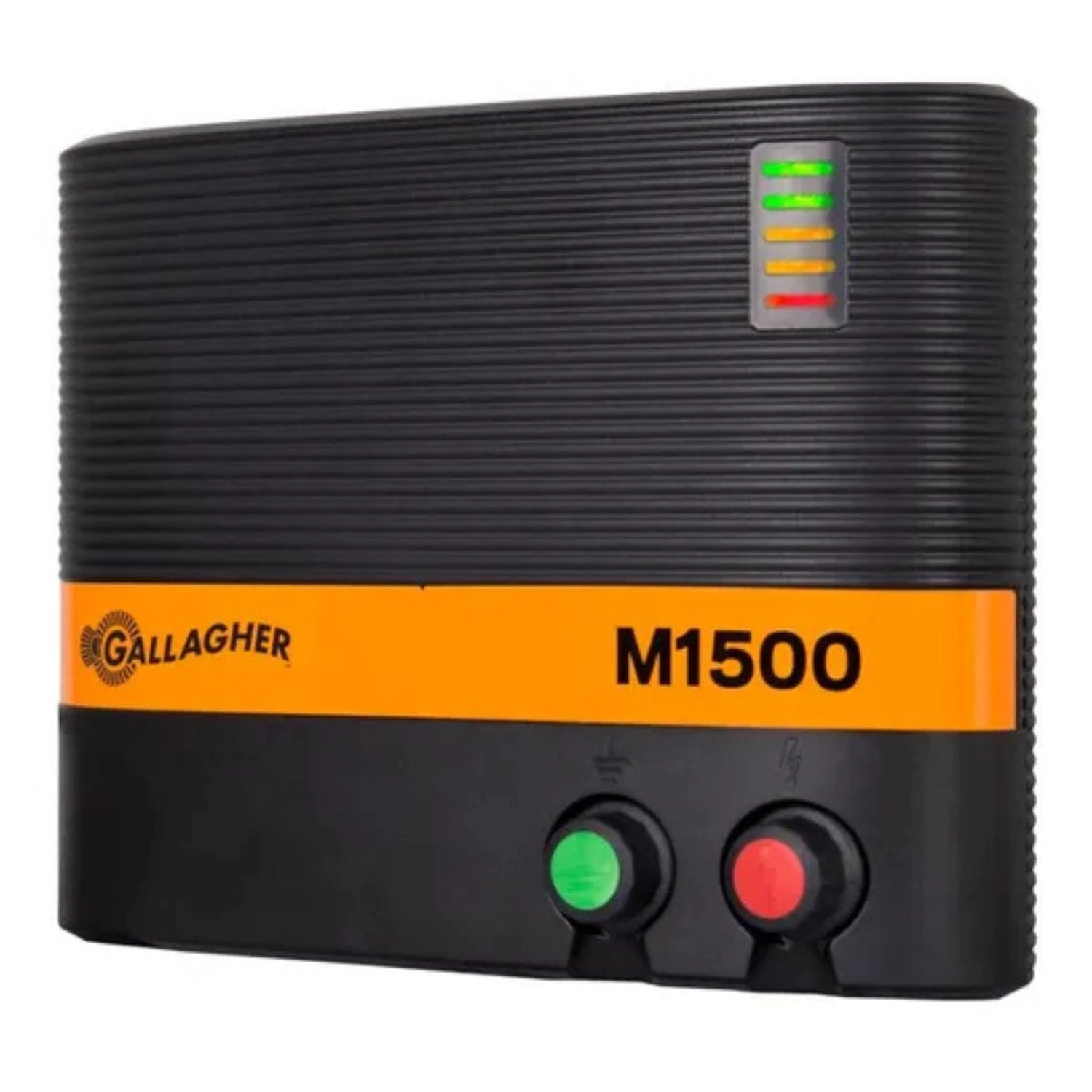

The Gallagher M1500 is a high-performance mains-powered electric fence energizer delivering 15 joules of output energy — engineered for large-scale livestock operations, extensive pasture systems, and demanding fencing environments. With smart adaptive technology and a robust build, the M1500 is the top-of-range choice for farmers and ranchers who need maximum power and reliability.

Key Features

• 15 Joule Output — delivers powerful, consistent shocks across up to 160 miles (260 km) of clean fence or 500+ acres of pasture
• Smart Adaptive Technology — automatically adjusts output to changing fence conditions (vegetation load, wire type, weather) for optimal performance
• Quick-Scan Voltage Bar — real-time bar graph display shows output voltage at a glance without a separate tester
• Mains-Powered (110–240V AC) — reliable continuous power for permanent installations

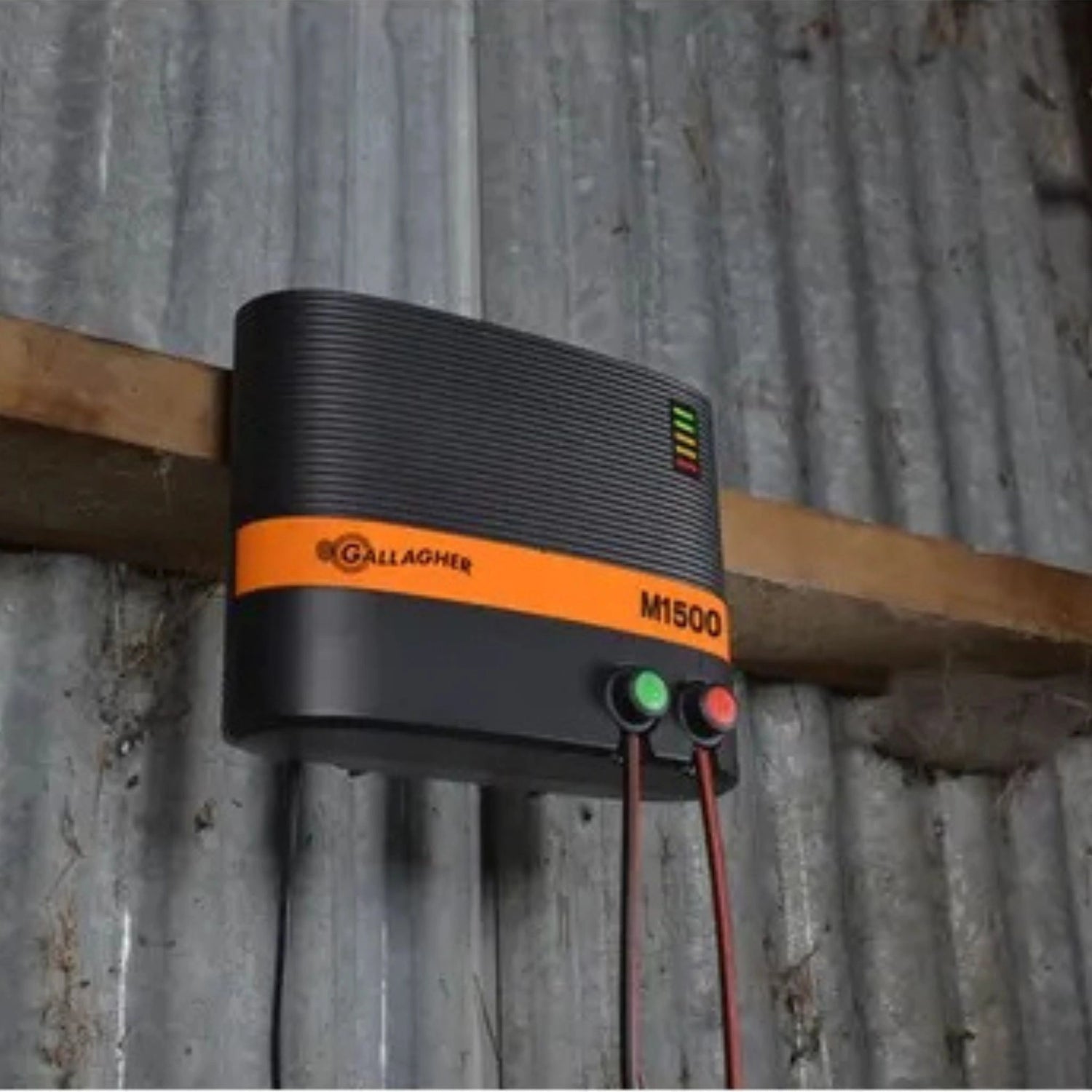

• Durable All-Weather Housing — tough outer casing rated for outdoor and shed mounting in harsh conditions
• Split Bolt Terminals — secure, tool-free fence and earth connections
• Modular Design — easy field servicing and component replacement
• 1-Year Manufacturer's Warranty

What Wires to Use With the M1500

The M1500's 15-joule output is suited to high-resistance fence lines. Recommended wire types:

• Gallagher Turbo Wire (1.6 mm or 2.5 mm) — best for permanent multi-wire systems; low resistance, maximum conductivity over long runs
• Gallagher Poly Rope (6 mm or 8 mm) — ideal for semi-permanent paddock divisions and horse fencing
• Gallagher Poly Tape (20 mm or 40 mm) — recommended for horse or high-visibility perimeter fencing
• Gallagher HT Wire / Galvanized Steel Wire (12.5 gauge / 2.5 mm) — for permanent multi-strand perimeter fences on large properties
• Gallagher Poly Wire (6-strand) — suitable for temporary rotational grazing setups on shorter runs

Recommended Accessories & Compatible Products

• Gallagher Earth Stakes (G62050 / G62100) — minimum 3 x 1.2 m earth stakes recommended for 15-joule units
• Gallagher Fault Finder / Voltage Tester (G50530 / G50540) — for diagnosing fence faults across long runs
• Gallagher Lead-Out Cable (G70200 / G70210) — insulated underground cable for connecting energizer to remote fence lines
• Gallagher Lightning Diverter (G65300) — essential surge protection for mains-powered units in exposed locations
• Gallagher Insulated Joiners & Connectors — for joining wire types and connecting to gate handles
• Gallagher Electric Gate Handles & Bungy Gates — for on/off access points throughout the fence system

Specifications

• Model: M1500 (G324514)
• Power Source: Mains (110–240V AC)
• Output Energy: 15 Joules
• Stored Energy: ~30 Joules
• Max Coverage: 160 miles (260 km) clean fence / 50 miles (80 km) with heavy vegetation
• Voltage Output: Up to 10,000V
• Display: Quick-Scan Voltage Bar Graph
• Weight: 2.72 kg (6 lbs)
• Warranty: 1 Year
• SKU / Part No.: G324514 / FENELEG324514
