FIMCO SPF5302843 | 65-Gallon UTV Sprayer | 3-Nozzle Stainless Wet Boom | 36 ft

The FIMCO SPF5302843 is a 65-gallon UTV-mounted sprayer featuring a 3-nozzle stainless steel wet boom with 36 feet of total spray coverage and independent per-nozzle on/off toggle control. Powered by a 4.5 GPM High Flo fan-cooled diaphragm pump and fitted with Hypro broadcast tips, it is built for high-volume weed control, fertilizer application, and pest management on farms, ranches, and large rural properties.

What is the FIMCO SPF5302843?

The FIMCO SPF5302843 is a UTV boom sprayer manufactured by Fimco Industries (USA). It differs from standard folding boom models by using a stainless steel wet boom with Hypro broadcast nozzle tips and individual nozzle toggle switches, giving operators precise control over spray zones without stopping. The 65-gallon UV-stabilized roto-molded tank mounts to most UTV beds via a top-mounted boom bracket that installs without tailgate removal.

Key Features

• 3-nozzle stainless steel wet boom – 36 ft total spray coverage with Hypro broadcast tips for consistent, accurate application
• Independent nozzle toggle control – Each of the 3 nozzles toggles on/off independently for precise zone spraying
• 4.5 GPM High Flo pump – Internally fan-cooled motor with chemically resistant valves and diaphragms for extended pump life
• 65-gallon roto-molded tank – UV-stabilized polyethylene with molded-in baffles, transport handles, and 5-inch FIMCO measuring lid

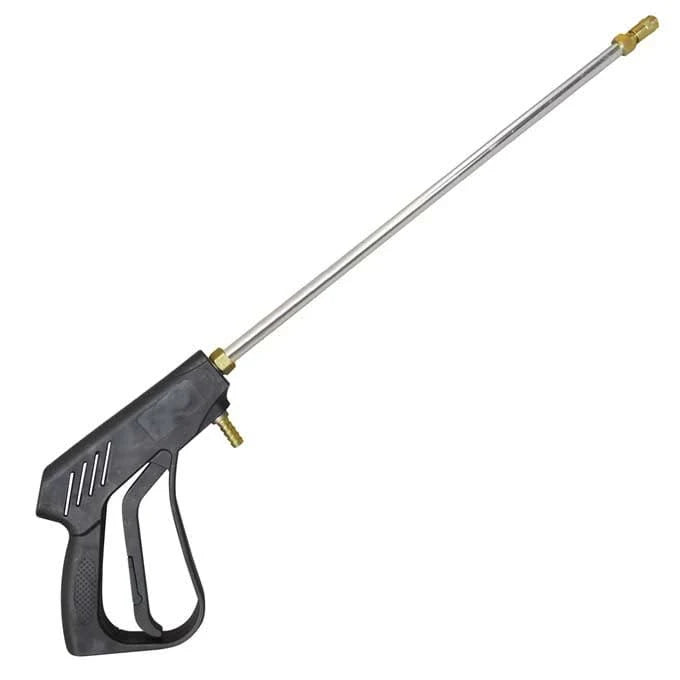

• Deluxe pistol grip spray wand – Reaches up to 40 ft horizontal and 28 ft vertical; ergonomic polymer handle with precision brass tip

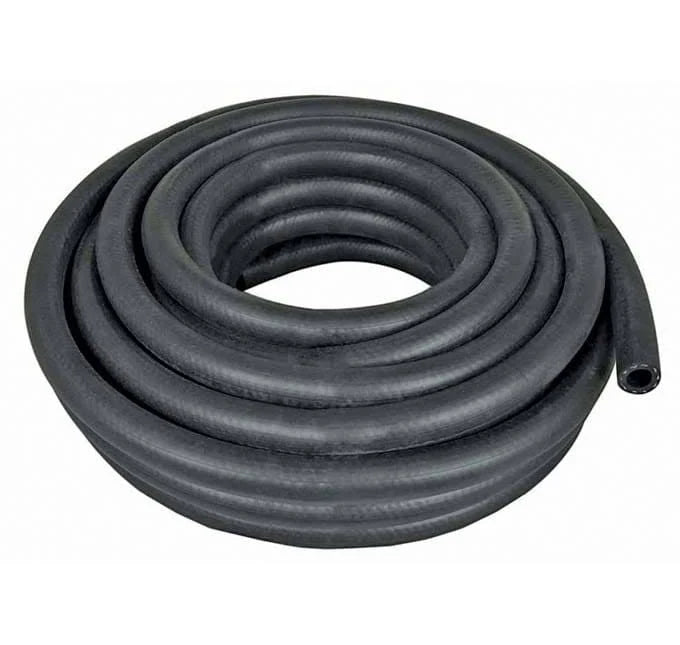

• 25 ft hose – Provides reach for spraying around buildings, fences, trees, and obstacles

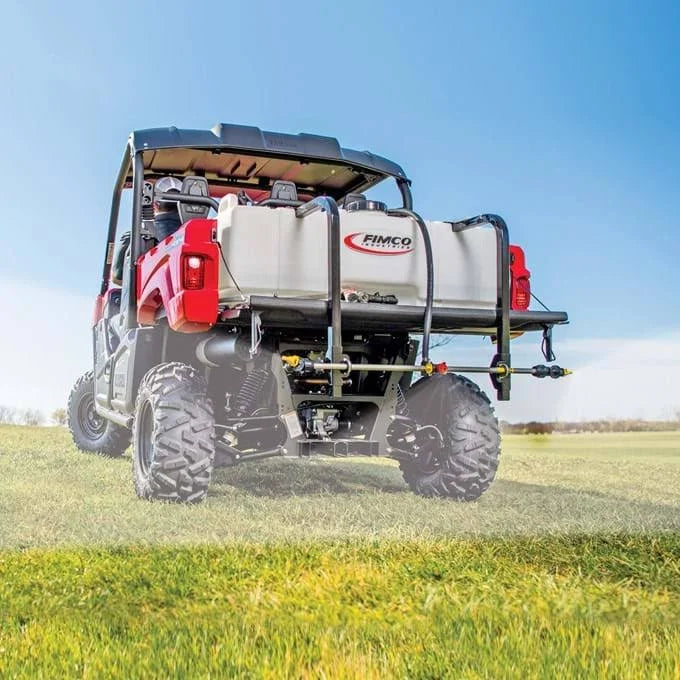

• Top-mounted boom design – Installs without removing your UTV tailgate for fast, tool-free setup

What is the FIMCO SPF5302843 used for?

The SPF5302843 is designed for large-area liquid application tasks where precise boom control matters. Common applications include:

• Weed and herbicide control – Boom spray pastures, fence lines, roadsides, and crop edges with 36 ft coverage per pass
• Fertilizer application – Apply liquid fertilizer evenly across fields and paddocks
• Pest and insect control – Efficiently cover large areas with insecticides
• Fungus control – Apply fungicides to crops, turf, and orchards
• Spot spraying – Use the pistol grip wand for targeted application around structures and fence posts
• Dust suppression and watering – Versatile liquid delivery for non-chemical tasks

What is the difference between the SPF5302843 and SPF5302830?

The SPF5302843 (this model) uses a 3-nozzle stainless steel wet boom with Hypro tips and independent nozzle toggle control, covering 36 feet per pass. The SPF5302830 uses a 7-nozzle folding welded steel dry boom with Teejet® tips and a spring-loaded breakaway design, covering 12 feet per pass. The SPF5302843 is better suited for wide-open field spraying where maximum coverage width and nozzle zone control are priorities. The SPF5302830 is better for tighter areas and operations where boom breakaway protection is important.

What UTV does the FIMCO SPF5302843 fit?

The SPF5302843 is designed to fit most standard UTV and side-by-side beds via its top-mounted boom bracket, which installs without tailgate removal. Compatible with most Polaris Ranger, Can-Am Defender, John Deere Gator, Kawasaki Mule, and similar utility vehicle models. Always verify UTV bed dimensions against the unit footprint before ordering.

Specifications

• Model: FIMCO SPF5302843
• Tank capacity: 65 gallons
• Pump output: 4.5 GPM
• Pump type: High Flo diaphragm pump, internally fan-cooled motor
• Boom type: Stainless steel wet boom
• Boom coverage: 36 feet (3 nozzles)
• Nozzle tips: Hypro broadcast tips
• Nozzle control: Independent on/off toggle per nozzle
• Wand reach: 40 ft horizontal / 28 ft vertical
• Hose length: 25 feet
• Tank construction: UV-stabilized roto-molded polyethylene
• Tank lid: 5-inch FIMCO measuring lid
• Weight: 68 kg (150 lbs)
• Country of origin: USA
• SKU: HARSPRUTV2843
• Manufacturer: Fimco Industries

What's Included

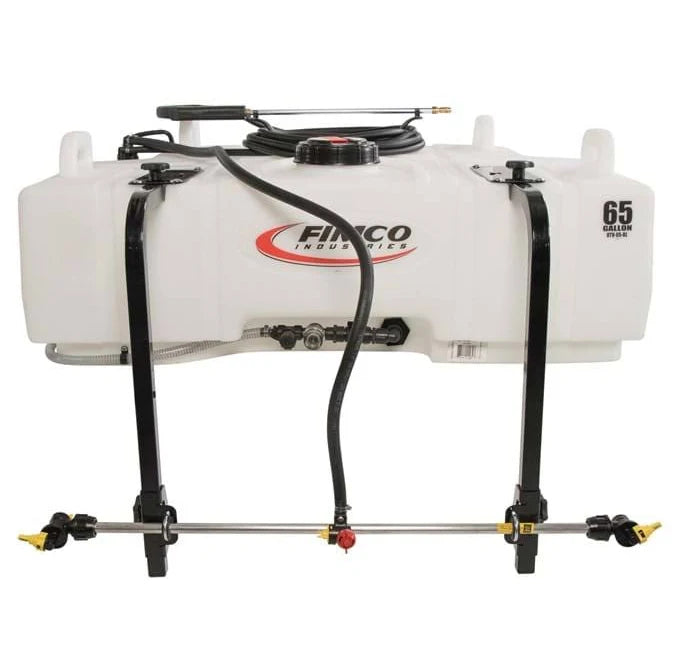

• 65-gallon roto-molded tank with measuring lid
• 4.5 GPM High Flo fan-cooled diaphragm pump
• 3-nozzle stainless steel wet boom with Hypro broadcast tips
• Deluxe pistol grip spray wand with 25 ft hose and brass tip
• Mounting hardware and boom bracket

⚠ Custom Order Only — Please allow 4–6 weeks for delivery. Local pickup available. Please confirm UTV bed compatibility before ordering.
